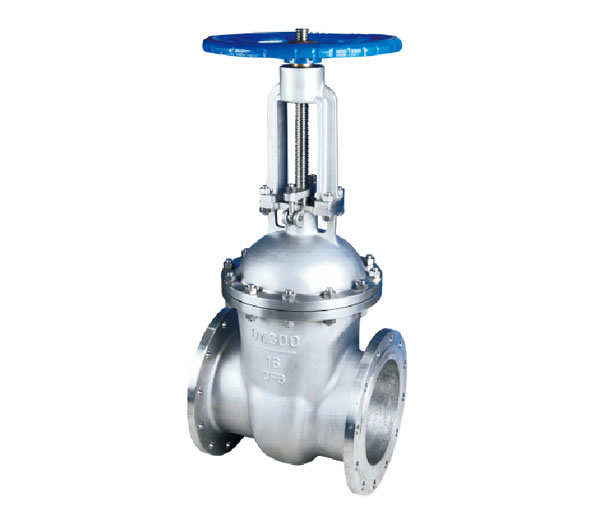

GB Gate Valve

Time:2021-10-14 09:44

Clicks:

国标闸阀1.6MPa主要连接尺寸：

尺寸	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720

国标闸阀2.5MPa主要连接尺寸：

尺寸	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720

国标闸阀4.0MPa主要连接尺寸：

尺寸	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	mm	130	150	160	180	200	250	280	310	350	400	450	550	650	750	850	950
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600

国标闸阀6.4MPa主要连接尺寸：

尺寸	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	mm	170	190	210	230	240	250	280	320	350	400	450	550	650	750	850	950
H	mm	175	180	210	230	350	359	373	435	500	614	674	818	970	1145	1280	1450
W	mm	120	120	140	160	200	240	280	320	360	400	400	450	560	640	800	800

国标铸钢闸阀10.0MPa主要连接尺寸：

尺寸	DN	15	20	25	32	40	50	65	80	100	125	150	200	250
L	mm	170	190	210	230	240	250	280	310	350	400	450	550	650
H	mm	175	180	210	230	350	359	373	435	500	614	674	818	970
W	mm	120	120	160	180	240	280	320	360	400	450	560	640	720
