Current location: Zhengtuo Valve > PRODUCTS > Flanged ball valve >

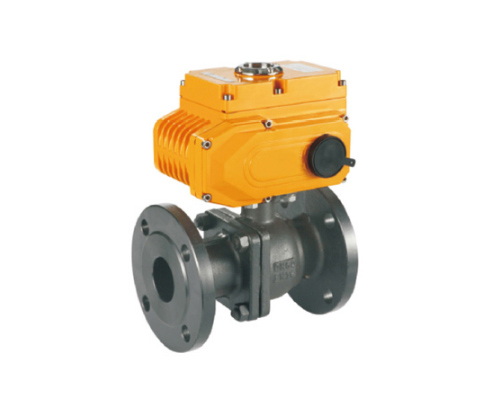

Electric Flanged Ball Valve

Time:2021-10-14 09:40

Clicks:

Configuration and connection dimensions:

1.6Mpa
通径DN		L	D	K	D1	n-φd	b	i	H	W
mm	m	L	D	K	D1	n-φd	b	i	H	W
15	in	130	95	65	46	4-φ14	14	2	190	196
20	1/2″	140	105	75	56	4-φ14	16	2	185	196
25	3/4″	150	115	85	65	4-φ14	16	2	210	196
32	1″	165	135	100	76	4-φ18	18	3	220	196
40	11/4″	180	145	110	84	4-φ18	18	3	230	196
50	11/2″	200	160	125	99	4-φ18	20	3	265	196
65	2″	220	180	145	118	4-φ18	20	3	300	255
80	21/2″	250	195	160	132	8-φ18	20	3	325	255
100	3″	280	215	180	156	8-φ18	22	3	350	255
125	4″	320	245	210	184	8-φ18	22	3	375	255
150	5″	360	280	240	211	8-φ22	24	3	420	255
200	8″	400	335	295	266	12-φ22	24	3	460	255

2.5Mpa
通径DN		L	D	K	D1	n-φd	b	i	H	W
mm	m	L	D	K	D1	n-φd	b	i	H	W
15	in	130	95	65	46	4-φ14	14	2	190	196
20	1/2″	140	105	75	56	4-φ14	16	2	185	196
25	3/4″	150	115	85	65	4-φ14	16	2	210	196
32	1″	165	135	100	76	4-φ18	18	3	220	196
40	11/4″	180	145	110	84	4-φ18	18	3	230	196
50	11/2″	200	160	125	99	4-φ18	20	3	265	196
65	2″	220	180	145	118	8-φ18	22	3	300	255
80	21/2″	250	195	160	132	8-φ18	24	3	325	255
100	3″	280	235	190	156	8-φ22	24	3	350	255
125	4″	320	270	220	184	8-φ26	26	3	375	255
150	5″	360	300	250	211	8-φ26	28	3	420	255
200	8″	400	360	310	274	12-φ26	30	3	460	255
